Supper Spring MINI HDMI cable
Applications:
The Ultra thin HDMI cable widely used in COMPUTER, Multimedia, Monitor, DVD Player, Projector, HDTV, Car, Camera, HOME THEATER.
● SUPPER SLIM & THIN SHAPE:
The OD of the wire is 3、5.0millmeter, the shape of both ends of the cable is 50%~80% smaller than the common HDMI on the market, because it is made of special material (Graphene) and special process, the cable performance is ultra high shielding and ultra high transmission, Can reach 8K@60hz (7680* 4320@60Hz) resolution.
● SUPPER FLEXIBLE & SOFT:
The cable is made of special materials and professional manufacturing process. Wire is very soft and flexible so that can be easily rolled up and unrolled. When traveling, you can roll it up and pack it in a small box.
● Ultra high transmission performance:
Cable support 8K@60hz,4k@120hz. Digital transfers at rates up to 48Gbps
● Ultra high bending resistance and high durability:
36AWG pure copper conductor, gold plated connector corrosion resistance, high durability; Solid copper conductor and graphene technology shielding support ultra high flexibility and ultra high shielding.
Product Detail Specifications
Physical CharacteristicsCable
Length: 0.5M/1M /2M
Color: Black
Connector Style: Straight
Product Weight:
Wire Gauge: 32 AWG
Wire Diameter: 4.5.0millimeter
Packaging InformationPackage Quantity 1Shipping (Package)
Quantity: 1Shipping (Package)
Weight:
Product Description
Connector(s)

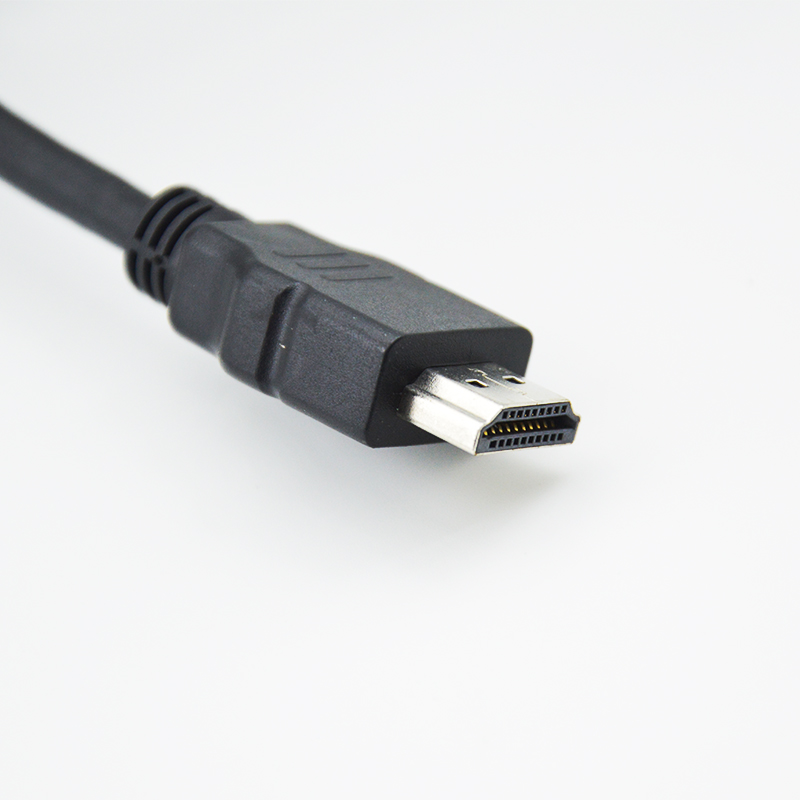

Connector A: 1 - HDMI (19 pin) Male
Connector B: 1 - MINI HDMI (19 pin ) Male
Ultra High Speed Ultra Slim HDMI cable supports 8K@60HZ,4K@120HZ

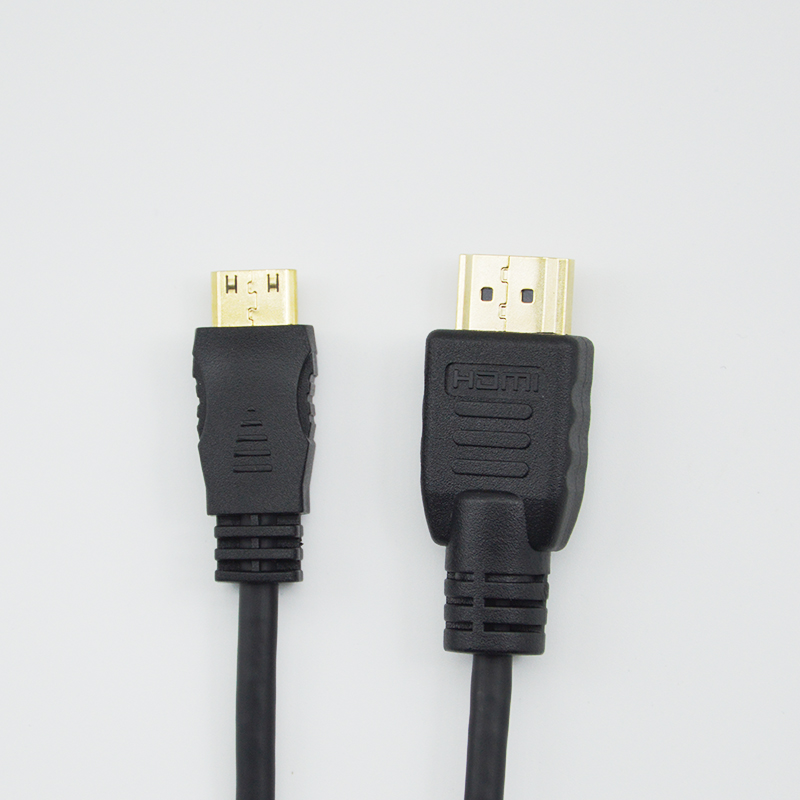

HDMI Male to MINI HDMI Male cable
Single Color Molding Type
24K Gold Plated
Color Optional
Specifications
1. SUPPER SPRING HDMI A Male TO MINI HDMI Cable
2. Gold plated connectors
3. Conductor: BC (bare copper),
4. Gauge: 32AWG
5. Jacket: pvc jacket with Graphene technology shielding
6. Length: 0.5/1m / 2m or others. (optional)
7. Support 7680*4320,4096x2160, 3840x2160, 2560x1600, 2560x1440, 1920x1200, 1080p and etc. 8K@60hz,4k@120hz,Digital transfers at rates up to 48Gbps
8. All materials with RoHS complaint
| Electrical | |
| Quality Control system | Operation according to regulation & rules in ISO9001 |
| Voltage | DC300V |
| Insulation Resistance | 2M min |
| Contact Resistance | 5 ohm max |
| Working Temperature | -25C—80C |
| Data transfer rate | 48 Gbps Max |
The line of computer power supply, have black, yellow, white, red, green, blue, what does each representative mean?
Yellow: represents the + power cord (working voltage on the hard disk, optical drive, fan, etc., and-simultaneously providing EIA power to the serial port).
Orange: represents + 3.3V power cord (power directly to DIMM, AGP slots).
Gray: represents the P.G signal line (power status information line, it is the result of other power line through a certain circuit calculation, when pressing the computer start key, the signal indicates that the power supply is good can be turned on without signal indicating that there is a fault main board automatic monitoring).
Blue: Representative-power cord (provide EIA power to serial port)
White: representing-5V power cord (soft-drive phase-locked data separation circuit)
Purple: represents + 5VStandBy power cord (power a small circuit of the main board to detect various boot commands)
Green: represents PS-ON signal line (motherboard power signal line on / off, a certain voltage when not on, can directly switch relative to the black line as a test, or can be regarded as the boot button when turned on)
Black: Ground wire of the system circuit
